Product Details:
|
| Material: | Plastic | Pressure: | Medium Pressure |
|---|---|---|---|
| Power: | Electric | Temperature Of Media: | Normal Temperature |
| Media: | Water | Port Size: | Standard |
| Product Name: | Water Control Valve | Working Pressure: | 0.15-0.6MPA |
| Standard: | DIN, ANSI | ||
| High Light: | 2900FT Fleck Control Valve,ANSI Fleck Control Valve,Medium Pressure Fleck Control Valve |
||
Oceania 2900FT Stable performance fleck control valve fleck valve Filter valve Softening valve

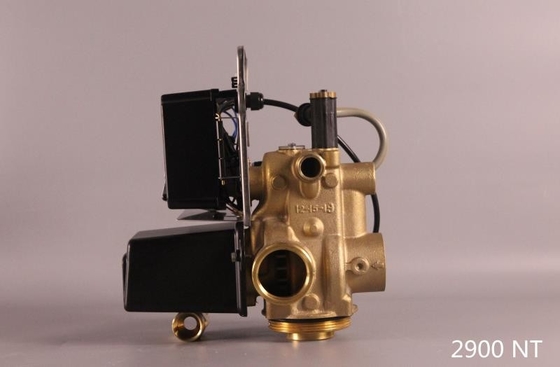

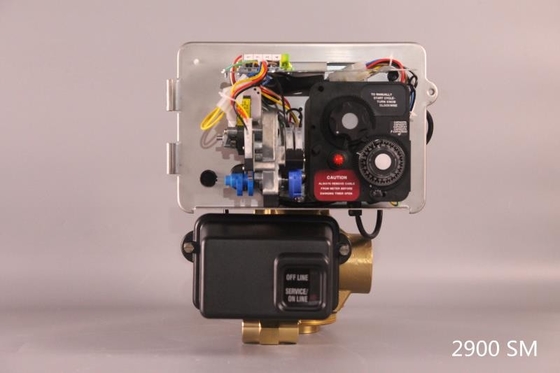

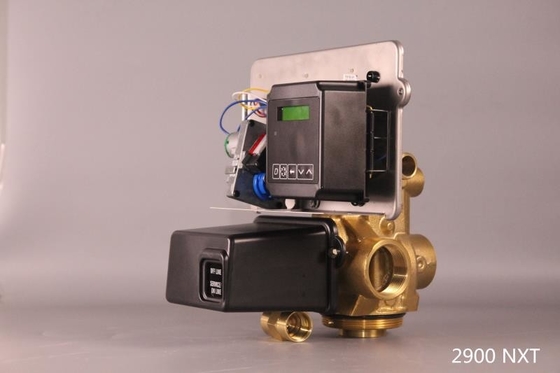

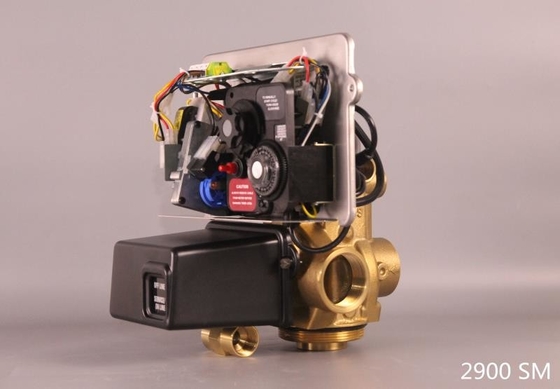

Fleck control valve 2900ST
FLECK 2900 Product Description
Name: 2900 2" Control Valve
FLECK 2900 Features:
1. Incorporates 2 time-tested, hydraulically-balanced pistons to independently pilot service flow and regeneration
2. Perfect for light commercial/heavy residential systems
3. For use with single or multiple tank systems
4. Backwashes softener tanks up to 36" diameter
5.Available with 7 or 12 day timer or meter to control regeneration
6.Lead-free brass valve body for superior strength and durability
7.No hard water bypass
FLECK 2900 Options
1. Backwash filter
2. Meter initiated regeneration
3. No hard water bypass
4. Electronic timer, 3200NXT, 3214NXT, or XT
5.Service valve operator
6.Auxiliary switch
7.Hot water (time clock down-flow only - 180°F)
8.Treated water regeneration
9.Environmental cover
10.Up-flow regeneration
11.Side mount
FLECK 2900 Valve Specifications
| Valve material | Nonleaded brass |
| Inlet/Outlet pipe diameter | 2″ |
| Regenerative process | 5 |
FLECK 2900 Range of flow (0.35MPa Inflow pressure)
| Continuous water inflow (0.1MPa drop) | Side-mounted:24.07 m3/h |
| Peak water inflow (0.175MPa drop) | Side-mounted:31.8 m3/h |
| Cv | 27.5 |
| Back-wash flow (0.175MPa drop) | 5.68 m3/h |
FLECK 2900 Regeneration
| Down/Up flow | Both are suitable |
| Program regulation | All regeneration steps can be accommodation |
| Maximum regenerative time |
Motor control:164 per cycle ET /ETcontrol:0-999.9 minute Systemax control:0-999.9 minutes |
FLECK 2900 Meter
| Accuracy | 0.68-34.07 m3/h±5% |
| Capacity options |
Standard:4.73-80.49m3 Extended:23.67-402.46 m3 ET: 0-37852.11 m3 Systemax:0-378521.15m3 |
FLECK 2900 Main size
| Central line diameter | 1.5″(1.9″)O.D. |
| Drain line diameter | 3/4″NPTM |
| Brine line diameter | 3/8″& 1/2″ |
| Base diameter | 4″-8UN |
| Height from top of tank | 12″ |
| Suited base diameter |
Soften:14″— 30″ Expect filter:14″—21″ |
FLECK 2900 Additional Information
| Regenerative system | 3/8″-1600, 3/8″-1650, 1/2″-1700 |
| Electrical rating | 24V,110V,220V-50,60Hz |
| Maximum power | 143W |
| Estimated shipping weight |
Time clock:33 Ibs Metered valve:40 Ibs |
| Pressure |
Designed:2.1MPa Operating:0.14-0.84MPa
|
| Operating Temperature | 34°-110°F(10°-43°C) |
| * It has been proved as safe drinking water device material. | |
