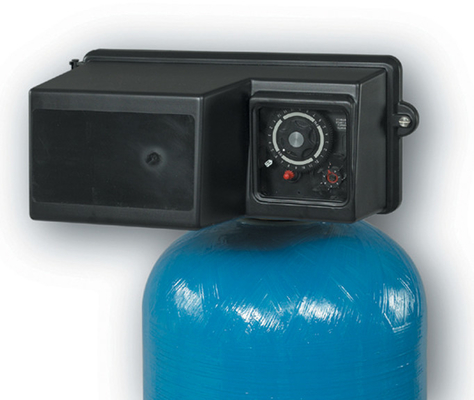

3150ST Water Softener Fleck Control Valve with Standard size port


Why choose our FLECK valve?
1,More than 10 years of production experience:

We have more than 10 years of production experience for Fleck valves since 2009. We are one of the earliest manufacturers of Fleck valves in China:

2,We can offer full models of FLECK valves:

Mechanical filtration valves: 5600FT, 2750FT, 2850FT, 3150FT, 3900FT
Mechanical softener valves: 5600ST, 2750ST, 2850ST, 2900ST, 3150ST, 3900ST
Electronic softener valve:5600SEST, 2750SEST, 2850SEST, 2900SEST, 3150SEST, 3900SEST
System softener valve:2750NT#6,2850NT#6,2900NT#6,2900NT#7,3150NT#6,3900NT#6 etc.

3,With complete accessories::

Flow meter, transformer, gear, grid, sealing ring, piston, accessories package, jet, water meter cover, elbow, micro switch, impeller, salt valve, timer

4. Stable performance, appearance and quality are the same as original fleck control valve.
5,Quality gurantee:

Two years warranty

6,Short lead time:

Normally 3 days, depends on the quantity.

7. Cheap price.It is only about 1 / 3 of the import control valve.
8. M.O.Q.:

1.Do you accept small order and what's your MOQ?
Yes, We accept trial order. There is no minimum order limit.

9. It can completely replace the original fleck control valve.
The accessories are the same as original ones. Details please refer to the technical data of fleck control valve.


AAA Asia 3150 Lead-free brass fleck control valve fleck valve Filter valve Softening valve

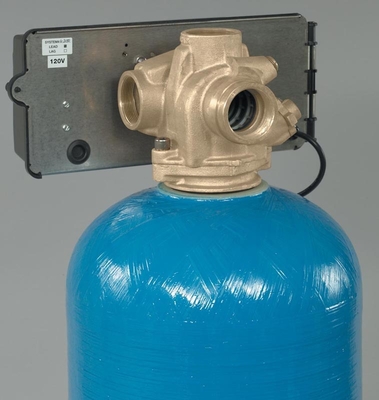

* 2” control valve composed of a lead-free brass valve body for superior strength and durability.
* Continuous service flow rate of 95 GPM with a backwash of 105 GPM
* Multiple controller options allowing for versatility including networking capabilities
* No hardwater bypass option available
* Versatile top or side mount options available
* Ideal for commercial, industrial and hot water applications
Fleck 3150 Control Valve Features:
●Fully adjustable, 5-cycle control is efficient and reliable, delivering controlled up-flow backwash, down-flow brining and down-flow service
●Versatile top or side mount is suitable for commercial or industrial applications
●Backwash capacity accommodates tanks up to 60" diameter
●Solid, lead-free brass construction for superior strength and durability
●Protective NEMA 3R equivalent enclosure is rain tight, and UV stable
●Flexible 7 or 12 day time clock or meter initiated regeneration
Fleck 3150 Control Valve Options
●Backwash filter
●Meter initiated regeneration
●Service valve operator
●Side mount
●Electronic timer, 3200NT, 3214NT, or XT
●Hot water (time clock 180°F; metered valve 150°F)
●Treated water regeneration
●No hard water bypass
●Up-flow regeneration
●Auxiliary switch
Fleck 3150 Control Valve Valve Specifications

Fleck 3150 Control Valve Range of flow(0.35MPa Inflow pressure)

Fleck 3150 Control Valve Regeneration

Fleck 3150 Control Valve Meter

Fleck 3150 Control Valve Main size

Fleck 3150 Control Valve Additional Information
