Product Details:
|
| Material: | Plastic | Pressure: | Medium Pressure |
|---|---|---|---|
| Power: | Electric | Temperature Of Media: | Normal Temperature |
| Media: | Water | Port Size: | Standard |
| Product Name: | Water Control Valve | Working Pressure: | 0.15-0.6MPA |
| Standard: | DIN, ANSI | ||
| High Light: | Plastic Fleck Control Valve,0.6MPA Fleck Control Valve,Side Mount Fleck Control Valve |
||
North America 2850ST time control fleck control valve fleck valve Filter valve Softening valve
Fleck valve 2850ST

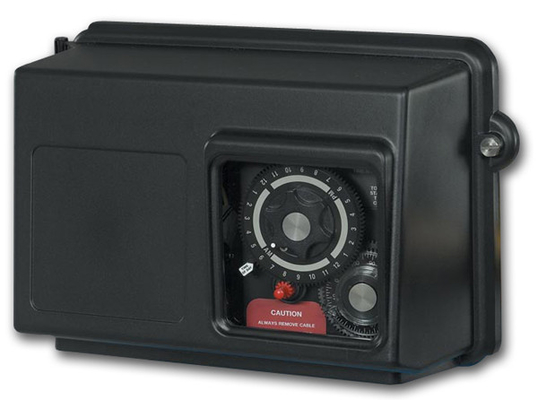

FLECK 2850 Product Description
Name: Fleck valve 2850 1.5" Commercial Control Valve
FLECK 2850 Features:
1.Fully adjustable, 5-cycle control delivers controlled upflow backwash, downflow brining and slow rinse, rapid rinse, timed brine refill and down flow service
2.Time-tested hydraulically balanced piston, seal and spacer design to pilot service flow and regeneration
3.Solid, lead-free brass valve body for superior strength and durability
4.Backwash capacity handles tanks up to 30" diameter
5.1-1/2" top mount control valve ideal for smaller size commercial/industrial applications
6.Choice of 7 or 12 day clock, manual or meter
7.Ideal for most filter application
FLECK 2850 Options

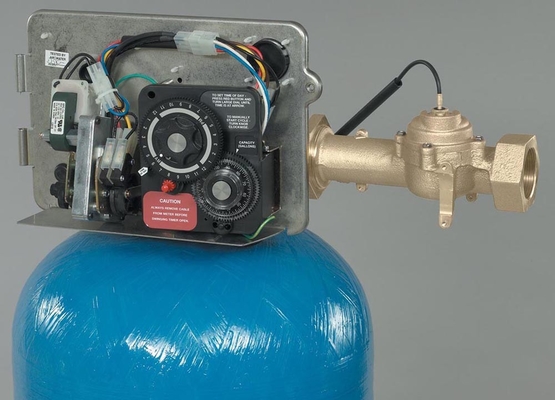

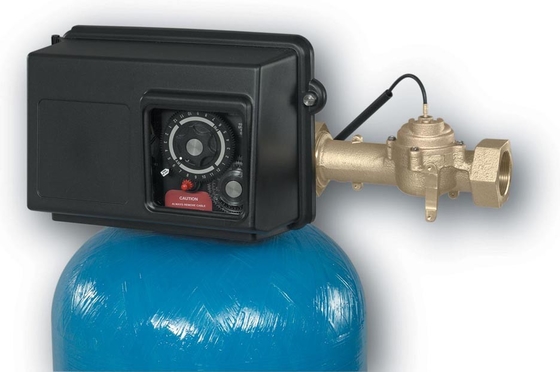

1. Meter-initiated regeneration
2. Backwash filter
3. No hard water bypass
4.Environmental cover

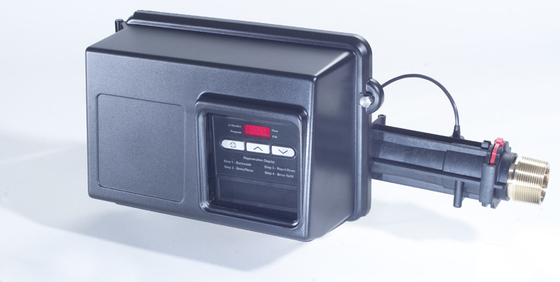

5. Electronic timer, 3200NXT, 3214NXT, or XT
6.Hot water (time clock 180°F; metered valve 150°F)
7.Manual operation
8.Auxiliary switch
9.Side mount
FLECK 2850 Fleck Valve Specifications
| Valve material | Nonleaded brass |
| Inlet/Outlet pipe diameter | 1-1/2″NTPF |
| Regenerative process | 5 |
Range of flow (0.35MPa Inflow pressure)
| Continuous water inflow (0.1MPa drop) | Side-mounted:11.5 m3/h |
| Peak water inflow (0.175MPa drop) | Side-mounted:15 m3/h |
| Cv | 13.2 |
| Back-wash flow (0.175MPa drop) | 11.13 m3/h |
Regeneration
| Down/Up flow | Only Down flow |
| Program regulation | All regeneration steps can be accommodation |
| Maximum regenerative time |
Motor control:164 per cycle SE control: 0-99 minutes ET control:0-999.9 minute Systemax control:0-999.9 minutes |
FLECK 2850 Meter
| Accuracy |
1″:0.16-9.09 m3/h±5% 1-1/2″:0.34-17.04 m3/h±5% |
| Maximum regenerative time |
1″: Standard:1.17-19.06 m3 Extended:5.87-99.81 m3 1-1/2″: Standard:2.36-40.24 m3 Extended:11.83-201.23 m3 ET: 0-37852.11 m3 Systemax:0-378521.15m3 |
FLECK 2850 Main size
| Central line diameter | 1.5″(1.9″)O.D. |
| Drain line diameter | 1″NPTM |
| Brine line diameter | 3/8″&1/2″ |
| Base diameter | 4″-8UN |
| Height from top of tank | 6-1/2″ |
| Suited base diameter |
Soften:10″— 30″ Expect filter :10″—24″ |
FLECK 2850 Additional Information
| Regenerative system | 3/8″-1600, 3/8″-1650, 1/2″-1700 |
| Electrical rating | 24V,110V,220V-50,60Hz |
| Maximum power | 72W |
| Estimated shipping weight |
Time clock:19 Ibs Metered valve:27 Ibs |
| Pressure |
Designed:2.1MPa Operating:0.14-0.84MPa |
| Operating temperature | 34°-110°F(10°-43°C) |
| * It has been proved as safe drinking water device material. | |
