Product Details:
|
| Place Of Origin: | Guangzhou, China (Mainland) | Brand Name: | Jieming |
|---|---|---|---|
| Material: | Wooden Box, 304 | Weight: | As Demand |
| Size: | Customized, As Demand | After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support |
| Warranty: | 1 Year | Product Name: | Ro Membrane Vessel |
| Application: | Water Purification | Certification: | ISO |
| Package: | Wooden Crate | Type: | Water Filter Parts |
| Name: | Ro Membrane Housing | Color: | Customerized |
| Highlight: | reverse osmosis membrane housing,8040 membrane housing |
||

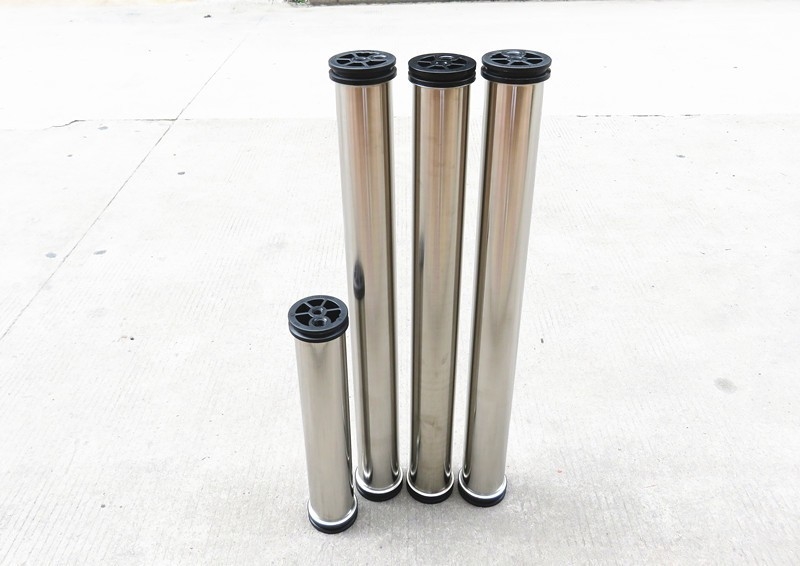

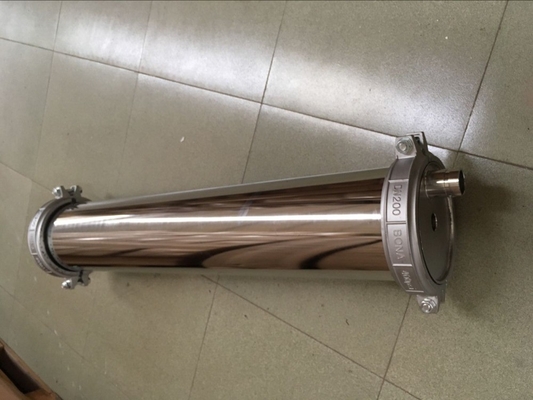

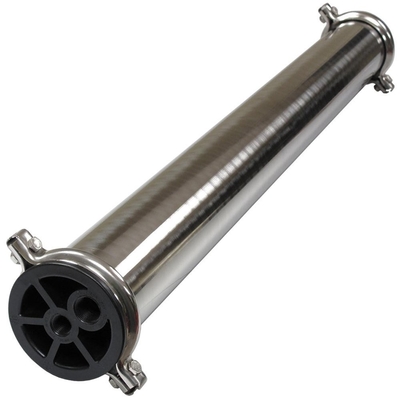

Stainless steel membrane housing
4 inch end Stainless steel membrane housing
4 inch stainless steel membrane housing
Use:
1, all made of stainless steel, outside shell polishing
2, the water inlet: at both ends (type A), on both sides of the inlet (B type)
3, structure: fittings standard, demolition convenient
4, seal: the withstand voltage test

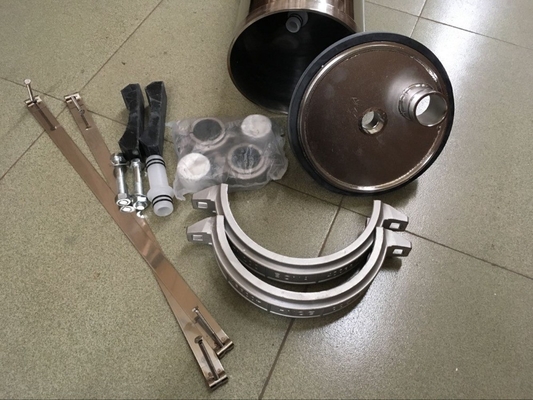

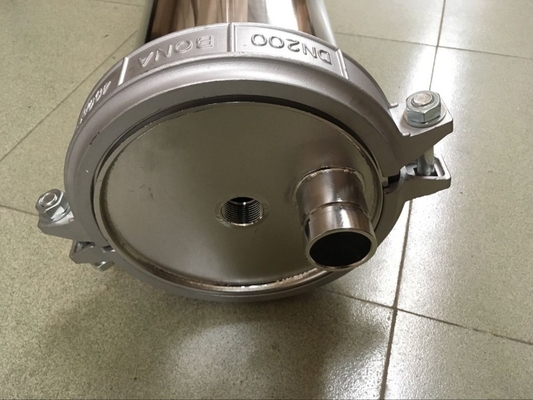

5, both ends of the organizational structure: clamp type, flange, built-in
4 "shell of pressure vessel - stainless steel housings
◆ FRP spiral shell, durable;
◆ inlet thread connection option: 1/2 ", 3/4" internal thread;
◆ freshwater outlet threaded connection: 1/2 "internal thread;
◆ SS316L half-moon lock plate is easy to operate, safe and reliable;
◆ head assembly;
◆ pressure type: 3001000Psi;
◆ length type: 1, 2, 3, 4 core;
Design a direct head connection, reduce the number of connectors for use in membrane
Technical performance parameter for Stainless steel membrane housing:
| Model | L (mm) | L1 (mm) | D (mm) | A (in) | B (OUT) |
| RY414 | 428 | 368 | Phi 102 | 1/2 " | 1/2 " |
| RY4021 | 605 | 545 | Phi 102 | 1/2 "3/4" | 1/2 " |
| RY4040 | 1087 | 1027 | Phi 102 | 1/2 "3/4" | 1/2 " |
| RY4080 | 2103 | 2043 | Phi 102 | 3/4 " | 1/2 " |
| RY40120 | 3119 | 3059 | Phi 102 | 3/4 " | 1/2 " |
| RY40160 | 4135 | 4075 | Phi 102 | 3/4 " | 1/2 " |
Package for Stainless steel membrane housing
Standard export carton packing.
7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Company Information
Guangzhou Jieming Water Treatment Equipment Co.,Ltd. is a one-stop purchasing, exporting, delivering service provider in Water industry field, located in ,Xintang town, Zengcheng, Guangzhou,China.
Facilitated with the largest manufacturer of FRP Tank---Dongguan Huayu Jieming FRP Vessle Co.,Ltd.(the founder’s co-owned factory), and plentiful manufacturers of water treatment products in China, we provide the most cost- effective products and considerately customized service for our customers like Engineering Company /Water treatment product distributor and Users in water treatment industry all over the world.
