Hydraulic Automatic Water Softener Flow Control Valves 9000

Hydraulic Automatic Water Softener Flow Control Valves 9000
Hydraulic Automatic Water Softener Flow Control Valves 9000 Hydraulic Automatic Water Softener Flow Control Valves 9000 Hydraulic Automatic Water Softener Flow Control Valves 9000 Hydraulic Automatic Water Softener Flow Control Valves 9000 Hydraulic Automatic Water Softener Flow Control Valves 9000 Hydraulic Automatic Water Softener Flow Control Valves 9000

Large Image :  Hydraulic Automatic Water Softener Flow Control Valves 9000

Product Details:
Place of Origin: China (Mainland)
Brand Name: FLECK
Certification: CE ;NSF ; ISO9001
Model Number: 9000
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece/Pieces
Price: Negotiable
Packaging Details: Carton packaging
Delivery Time: 3 to 5 working days
Payment Terms: L/C,D/P,T/T,MoneyGram payments for offline orders, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Month

Hydraulic Automatic Water Softener Flow Control Valves 9000

Description
Applicable Industries: Manufacturing Plant Place Of Origin: China (Mainland)
Brand Name:: Onelynn Material: Carton
Product Name: 9000Fleck Valve Automatic Valve In Water Treatment Funcation: Filter/softener
Model Number: 9000 Warranty: 2 Years
Use: Domestic Control Valves: Full Automatic
Function: Auto Regeneration
Highlight:

fleck water softener valve

,

water filter control valve

Hydraulic Automatic Water Softener Flow Control Valves 9000 0

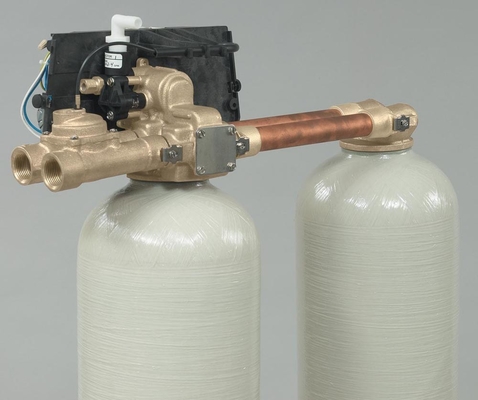

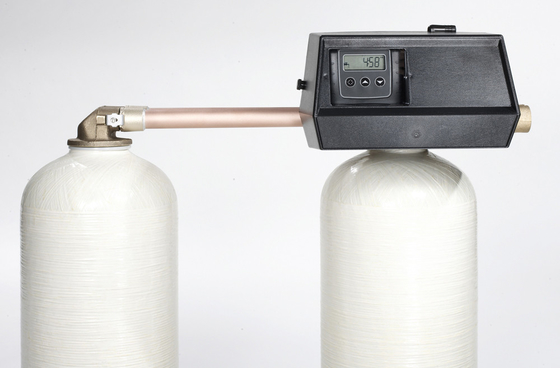

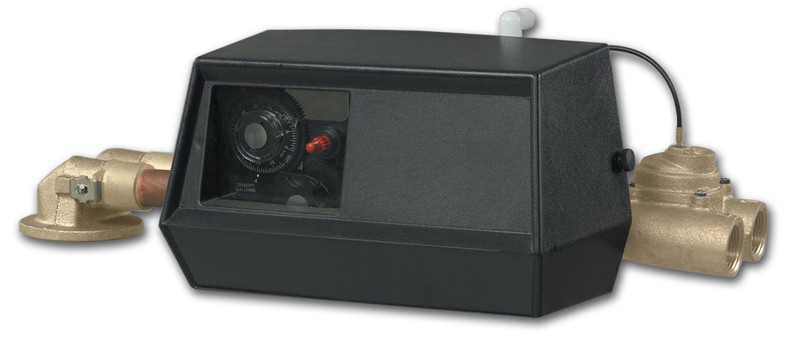

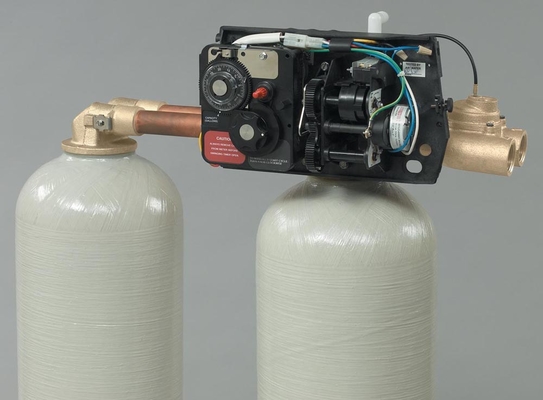

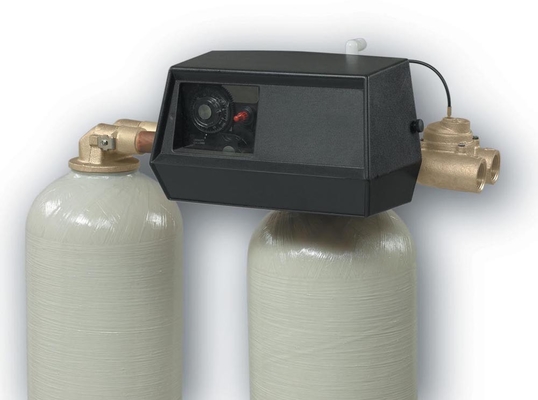

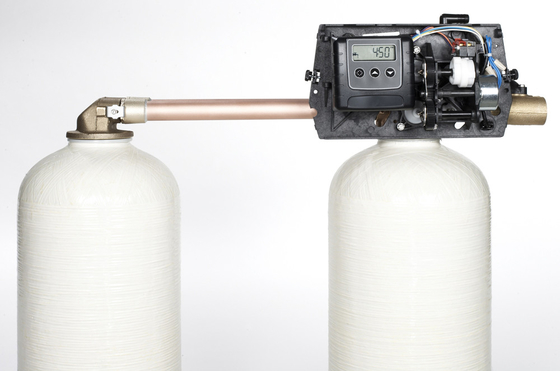

Fleck 9000 & 9000SXT Series 1” Residential Twin Alternating Softener Control Valves

Fleck’s 9000 valve controls the regeneration of both tanks in a twin alternating softener and is ideal for twin residential or light commercial water softeners up to 16” diameter tank size. The 9000 valve body is offered in the classic mechanical design for rugged construction and simple operation, as well as in the 9000SXT Electronic Programmable style for an extended range of settings and options capabilities.

Fleck Control Valves automatically control the backwash and regeneration cycles for water softeners to keep your water softener working at optimal performance all the time. Twin alternating softeners are metered for on-demand regeneration when a pre-set volume of water has been used. Ideal for situations where uninterrupted flow of soft water is a must twin softeners consist of two resin tanks. One resin tank is always in service, while the other tank is in standby. When the meter determines that the resin is near its capacity, it will switch the tank in standby to be in service, and the tank containing the exhausted resin switches into regeneration, and then into standby.



Benefits

Benefits of Fleck 9000 Twin Alternating Softener Valves

  • Uninterrupted Flow of Soft Water
  • Salt and water savings by using 100% capacity of the tank in service before switching to the second tank
  • Regenerates with soft water and keeps system clean for optimum operating efficiency and minimum maintenance
  • Solid lead-free brass body for long life and durability
  • Fully automatic operation

Details

Fleck 9000 Twin Alternating Softener Valve Product Details

Flow Rates: (50 PSI Inlet) 1” meter ¾” meter

  • Continuous (15 psi drop): 21 gpm 18 gpm
  • Peak (25 psi drop): 28 gpm 24 gpm
  • Max Backwash (25 psi drop): 8.5 gpm 8.5 gpm
  • Valve Material: Lead-Free Brass
  • 2½” – 8 NPSM Mounting Base
  • 1” In/Out Connections (¾” or 1 ¼” connections are also available)
  • 1600 Brine System ⅜”
  • No Hard Water Bypass
  • Meter Immediate Regeneration
AMI Model No. Valve Series Meter Size Operation Meter Capacity Range
YVS90EABAT03 9000 ¾” Mechanical 125-1,125 Gallon
YVS90FBBAT03 9000 1” Mechanical 1,550-26,350 Gallon
YVS90MABDT03 9000SXT ¾” Electronic Programmable 1-9,999 Gallon
YVS90MBBDT03 9000SXT 1” Electronic Programmable 1-9,999 Gallon
  • Valves shown 110v/60Hz (SXT Valves are 24v/60Hz with 110v transformer); other voltages available.
  • Valves shown with 3 gpm backwash flow (indicated by last 2 digits). Other backwash flows are available (max. 8.5 gpm).



Features


Fleck 9000 Twin Alternating Softener Valve Features

  • Fully adjustable 5-cycle control delivers controlled upflow backwash, downflow brining, slow rinse, rapid rinse, timed brine refill and downflow service
  • Continuous flow rate of 21 GPM (with 1” Meter)
  • All cycles are easily adjustable; program only necessary functions with "all cycle" variable time control
  • Backwash capacity handles tanks up to 16"
  • Choice of 3/4" or 1" meter satisfies wide range of operational needs
  •

Applications


Application for Fleck 9000 Twin Alternating Softener Valves

  • Twin Alternating Water Softeners up to 16” Diameter
  • Whole-House Water Softening
  • Point of Entry (POE) Water Softening
  • Light Commercial
  • Hotels, Resorts, and Spas
  • Pretreatment to RO and other Water Treatment Systems
  • Pretreatment to Ion Exchange Systems
  • Ice Makers
  • Labs



Parts


Optional Equipment for Fleck 9000 Twin Alternating Softener Valves

Fleck controls are available with the following options upon customer request:

  • Hot Water
  • Bypass Valve
  • Electronic Timer, SXT or XT
  • Window Cover
  • Auxiliary Switches



Related Media Filtration Products

  • Fleck 9100 Twin Alternating Water Softener Valves
  • Mineral Tanks for Water Softeners and Media Filters
  • Tank Adapters & Tank Accessories for Water Softeners & Media Filters
  • Brine Tanks for Water Softeners
  • DOWEX Ion Exchange Resins



Literature


Literature for Fleck 9000 Twin Alternating Softener Valves

  • Fleck 9000 Spec Sheet
  • Fleck 9000 Service Manual
  • AMI Softeners and Media Filters Using Fleck Valves
  • Water Softener and Media Filtration Products
