Product Details:
|
| Place Of Origin: | Gongguang, China (Mainland) | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturi |
|---|---|---|---|
| Dimension(L*W*H): | 250*1340 | Weight: | 150 |
| After-sales Service Provided: | Online Support | Warranty: | 3 Years |
| Product Name: | 1054-2.5 | Material: | PE, Fiber Glass |
| PressureCertificates: | CE ;NSF ; ISO9001 | Color: | Blue / Nature / Grey Or Custom |
| Working Pressure: | 150 Psi | Working Temperature: | 1-49℃(34-121) |
| Maximum Vacuum: | 127mmHg(5"Hg) | ||
| High Light: | RO System FRP Vessel,Multimedia Filter FRP Vessel,High Pressure FRP Vessel |
||
1. Standard back flushing pump(with electric machine)/inlet solenoid valve
2. Back flushing dosing device/5μm precision filter/integrated membrane housing
3. DOW membrane/ Hydraulics
4. Automatic chemical self washing mechanism/baking finish or S.S frame
5. Supervisory meters,such as concentrated water pressure gauge,flow meter,conductivity apparatus
6. Automatic control

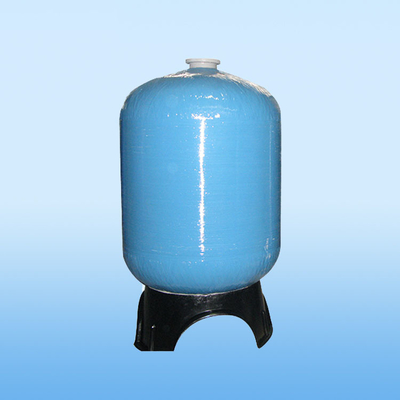

FRP TANK
8"- 63"dia. For multi-media filter and softerner
1). PE(Polyethylene)seamless one-piece tank liner:
2). 2.5" precision injected model with threaded opening for 8"-16" dia.Tanks ;
3). 4"precision injected model with threaded opening for 16",18",24",30",36" dia.Tanks;
4). 6"Aluminum alloy flange opening for 36",42",48",60",63"dia. tanks;
5). Continuous strands of fiber-glass with high strength Epoxy resin;
6). Completely rust and corrosion free;
7). FRP reinforced tripod base.
Application:
All feed water and waste water treatment application, included in commercial and industrial field.
ree;
Selling Units:
Single item
Single package size:
107X107X227 cm
Single gross weight:
150.0 kg
Package Type:
1,Winding withe the crashworthy foam.
2,Packed with double deck carton.
3,Using pallet for flange tanks.
Lead Time :
| Quantity(Piece) | 1 - 50 | >50 |
| Est. Time(days) | 5 | To be negotiated |
Application of FRP tank:
| NO. | specification | volume | top opening | bottom opening | LA | LB | LC | × | D | |
| Inch | mm | L | mm | mm | mm | mm | mm | |||
| 1 | 7×13 | φ180×335 | 6.3 | 2.5”NPSM | 334 | 320 | 304 | 198 | 181 | |
| 2 | 7×17 | φ180×430 | 8.6 | 2.5”NPSM | 428 | 414 | 398 | 292 | 181 | |
| 3 | 7×35 | φ180×905 | 20.1 | 2.5”NPSM | 904 | 890 | 874 | 768 | 181 | |
| 4 | 8×17 | φ205×445 | 11.3 | 2.5”NPSM | 446 | 432 | 416 | 292 | 206 | |
| 5 | 8×35 | φ205×905 | 24.0 | 2.5”NPSM | 905 | 891 | 875 | 751 | 206 | |
| 6 | 8×44 | φ205×1130 | 32.5 | 2.5”NPSM | 1131 | 1117 | 1101 | 977 | 206 | |
| 7 | 9×35 | φ230×905 | 32.0 | 2.5”NPSM | 905 | 891 | 875 | 734 | 232 | |
| 8 | 9×42 | φ230×1085 | 39.0 | 2.5”NPSM | 1085 | 1071 | 1055 | 914 | 232 | |
| 9 | 9×48 | φ230×1230 | 44.7 | 2.5”NPSM | 1232 | 1218 | 1202 | 1061 | 232 | |
| 10 | 10×17 | φ255×445 | 17.8 | 2.5”NPSM | 447 | 433 | 417 | 259 | 257 | |
| 11 | 10×35 | φ255×905 | 38.6 | 2.5”NPSM | 903 | 889 | 873 | 715 | 257 | |
| 12 | 10×44 | φ255×1130 | 49.5 | 2.5”NPSM | 1130 | 1116 | 1100 | 942 | 257 | |
| 13 | 10×54 | φ255×1390 | 61.9 | 2.5”NPSM | 1390 | 1376 | 1360 | 1202 | 257 | |
| 14 | 12×52 | φ300×1340 | 84.8 | 2.5”NPSM | 1342 | 1332 | 1312 | 1115 | 305 | |
| 15 | 12×65 | φ300×1650 | 106.3 | 2.5”NPSM | 1650 | 1640 | 1620 | 1425 | 305 | |
| 16 | 13×54 | φ330×1400 | 103.6 | 2.5”NPSM | 1400 | 1390 | 1370 | 1155 | 334 | |
| 17 | 14×65 | φ355×1670 | 145.6 | 2.5”NPSM | 1671 | 1661 | 1641 | 1410 | 360 | |
| 18 | 14×65 | φ355×1670 | 145.6 | 4”-8UN | 1670 | 1661 | 1641 | 1410 | 360 | |
| 19 | 16×65 | φ400×1670 | 187.7 | 2.5”NPSM | 1672 | 1662 | 1642 | 1380 | 410 | |
| 20 | 16×65 | φ400×1670 | 187.7 | 4”-8UN | 1671 | 1662 | 1642 | 1380 | 410 | |
| 21 | 16×65 | φ400×1670 | 187.7 | 4”-8UN | 4”-8UN | 1671 | 1662 | 1642 | 1380 | 410 |
| 22 | 18×65 | φ450×1670 | 237.0 | 4”-8UN | 1670 | 1640 | 1612 | 1310 | 465 | |
| 23 | 18×65 | φ450×1670 | 237.0 | 4”-8UN | 1670 | 1640 | 1612 | 1310 | 465 | |
| 24 | 21×69 | φ530×1750 | 316 | 4”-8UN | 1750 | 1563 | 1685 | 1195 | 540 | |
| 25 | 21×69 | φ530×1750 | 316 | 4”-8UN | 4”-8UN | 1750 | 1563 | 1545 | 1195 | 540 |
| 26 | 24×72 | φ600×1850 | 441 | 4”-8UN | 1850 | 1750 | 1715 | 1330 | 612 | |
| 27 | 24×72 | φ600×1850 | 421 | 4”-8UN | 4”-8UN | 1850 | 1680 | 1645 | 1260 | 612 |
| 28 | 24×87 | φ600×2200 | 520 | 4”-8UN | 4”-8UN | 2200 | 2030 | 1995 | 1610 | 612 |
| 29 | 30×72 | φ750×1850 | 676 | 4”-8UN | 1850 | 1750 | 1715 | 1240 | 765 | |
| 30 | 30×72 | φ750×1850 | 640 | 4”-8UN | 4”-8UN | 1850 | 1670 | 1635 | 1160 | 765 |
| 31 | 30×87 | φ750×2200 | 790 | 4”-8UN | 4”-8UN | 2200 | 2010 | 1975 | 1500 | 765 |
| 32 | 36×72 | φ900×1850 | 857 | 4”-8UN | 4”-8UN | 1850 | 1600 | 1554 | 1000 | 918 |
| 33 | 36×94 | φ900×2400 | 1093 | 6”flange | 6”flange | 2400 | 2150 | 2044 | 1370 | 918 |
| 34 | 40×72 | φ1000×1850 | 1046 | 4”-8UN | 4”-8UN | 1850 | 1605 | 1559 | 945 | 1020 |
| 35 | 40×94 | φ1000×2400 | 1478 | 6”flange | 6”flange | 2400 | 2155 | 2109 | 1495 | 1020 |
| 36 | 48×72 | φ1200×1850 | 1202 | 6”flange | 6”flange | 1850 | 1558 | 1451 | 595 | 1224 |
| 35 | 48×94 | φ1200×2400 | 1824 | 6”flange | 6”flange | 2400 | 2108 | 2001 | 1145 | 1224 |
| 36 | 60×83 | φ1500×2100 | 2158 | 6”flange | 6”flange | 2100 | 1780 | 1670 | 630 | 1530 |
| 37 | 60×94 | φ1500×2400 | 2688 | 6”flange | 6”flange | 2400 | 2080 | 1970 | 930 | 1530 |
| 38 | 63×83 | φ1600×2100 | 2580 | 6”flange | 6”flange | 2100 | 1780 | 1670 | 630 | 1620 |
| 39 | 63×94 | φ1600×2400 | 3150 | 6”flange | 6”flange | 2400 | 1788 | 1970 | 1620 | 1620 |
| 40 | 72×94 | φ1800×2400 | 3561 | 6”flange | 6”flange | 2400 | 2088 | 1908 | 1620 | 1836 |
About PE liner: Rotation moulding or blowing one-piece seamless without leakage.
Fiberglass winding,we can do customized color for the tank:
Reinforced PP base:
PACKAGE:
Standard export carton packing.
7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
