Product Details:
|
| Place Of Origin: | Guanzhou, China (Mainland) | Brand Name: | Jieming |
|---|---|---|---|
| Model Number: | JMT | Water Production T/h: | 8-70 |
| Operation Velocity M:: | 20-25 | Resin Filling Kg:: | 575-4520 |
| Resin Layer Height Mm: | 1500-1800 | Inlet/outlet Diameter Mm: | DN40-100 |
| Working Temperature ℃:: | 4-50 | Working Pressure Mpa:: | 0.25-0.5 |
| High Light: | stager controller,water softener control panel |
||

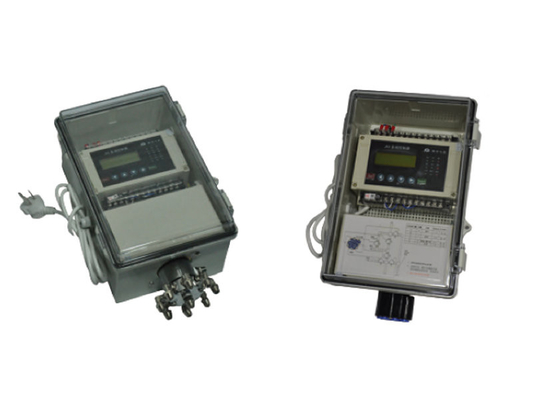

factory direct multi-valve system hydraulic control JKA stager controller
Product Technology
1. Counter-current Regeneration Full Bed Technology: The real counter-flow regeneration technology saves water up to 50% and saves salt up to 30%.
2. Flow control technology: Adopt flow rate measuring method to precisely measure total water output, increase the utilization efficiency of media ie. resin, save water and salt.
3. Flexibility to select different processes: Counter-current softening, co-current softening, sand filtratoin or activated carbon filtration can be slected.
4. wide scope of applications and high flow rate: meet various flow rate requirements via changing valve sizes.
5. Specifically designed controllers or softening systems are easy to manage.
6. Easy after-sale service and low cost of maintenance: the control is separated from the system, once there is failure of the system, only relevant part(s) need to be repaired at site. engineer service or return-to-factory repair is not necessary.
Specification
| ITEM | SPECIFICATION |
| Capacity | 1m3-200m3/hour |
| Outlet hardness | <0.03mmol/L |
| Working pressure | 0.2-0.6MPA |
| Control method | ManuaL,Autmatic,PLC |
| Regeneration way | Time or Flow |
| Working electricity | 220V/50Hz |
| Softener tank | FRP or SS304 |
| Regeneration device | brine tank |

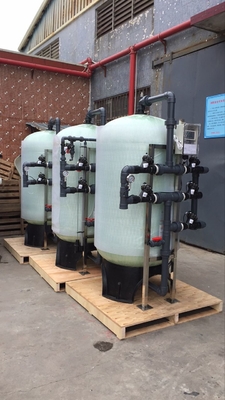

Application of industrial natural water softener and fiter:
Parameter
Pictures of multi valve system:
Standard export carton packing.
7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
