Product Details:
|
| Place Of Origin: | Guangzhou, China (Mainland) | Brand Name: | Jieming |
|---|---|---|---|
| Model Number: | Y50 | Product Name: | Diaphragm Valve |
| Y Type: | Y25, Y40, Y50, Y65,Y80,Y100 | DN Type: | DN40, DN50, DN65, DN80, DN100 |
| Usage: | For Water Treatment | Material: | Plastic |
| Pressure: | 0-7 Bar | Temperature Of Media: | 5℃~80℃ |
| Media: | Water | ||
| High Light: | pneumatic diaphragm valve,diaphragm solenoid valve |
||
Free Sample 1 Year Warranty Irrigation Electromagnetic Hydraulic Control 4 inch PA Material NPT solenoid diaphragm valve
Place of Origin: China (Mainland)
Brand Name:JIEMING
Model Number:Y521
Material:Plastic
Power:Hydraulic/Pneumatic
Media:Water
Sample Order:Free Sample
Application:Water Treatment Process
Feature:Anti-acid
Structure:Diaphragm
Temperature of Media:4-50℃
Pressure:1-8 bar
Port Size:1'
Connection:Socket weld end
Certification:ISO9001 CE
Standard or Nonstandard:Standard
Y pattern diaphragm valve
Y pattern diaphragm valve Features:
1.Y pattern diaphragm valve adopts dual control chamber design, to control the internal water flow, so that the control function is more flexible, reliable and durable, totally eliminates the switching defects that single chamber might have.
2. Y pattern diaphragm valve body and valve bonnet is made from fiberglass reinforced NORYL material, high strength, long service life and corrosion resistant.
3. The reinforced rubber diaphragm is molded by special treatment, long service life, and high strength.
4. Y shape flow channel design reduces pressure loss, increases water flux.
5. Flexible conversion between normally-open type and normally-closed type.
6. Spring assisting, water flow restriction and operation display are available also.
Working pressure: 1.0-8.0 Bar (1.0 - 8.2 kg/cm2)
Working temperature: under 4°C- 50°C.

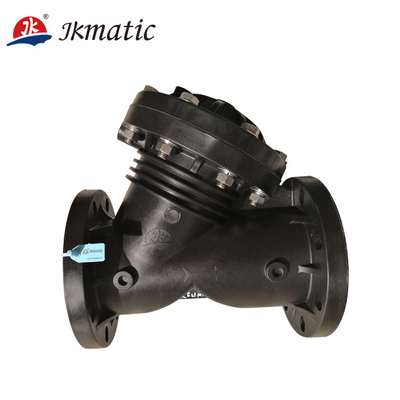

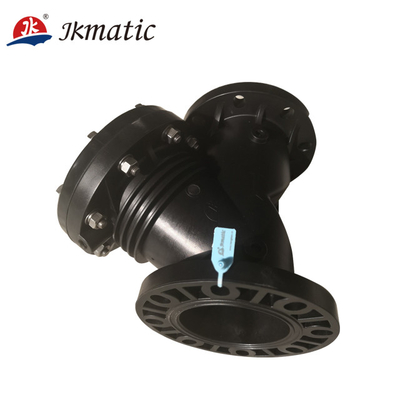

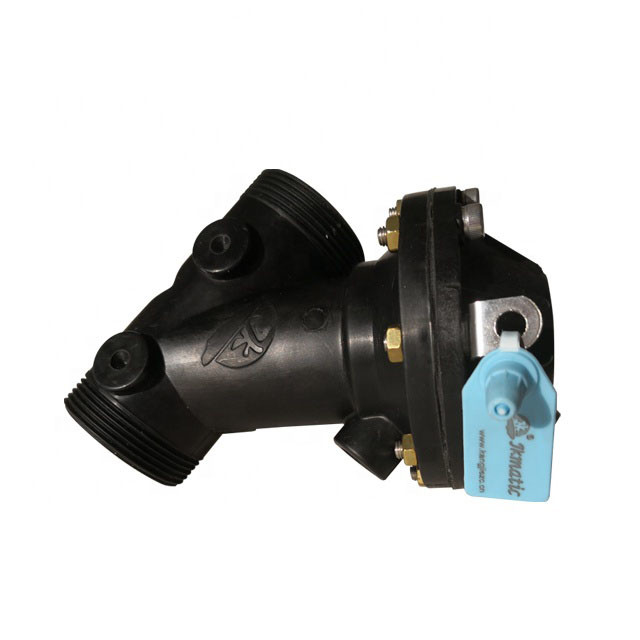

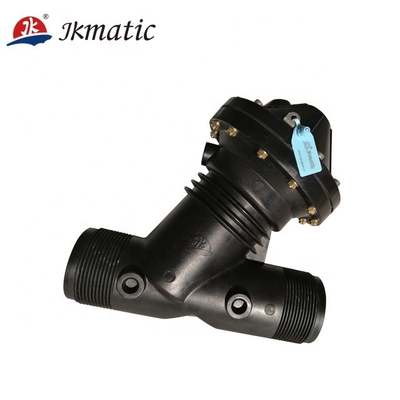

Pictures of Y pattern diaphragm valve:
Application-multi valves system:
Standard export carton packing.
Selling Units:Single item
Single package size: 16X14X9 cm
Single gross weight:0.44 kg
Package Type:Inner Plastic Wrapping, Outside Carton Package with Plastic Wrapping
Picture Example:
Lead Time :
| Quantity(Piece) | 1 - 10 | >10 |
| Est. Time(days) | 5 | To be negotiated |
7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
