Product Details:
|
| Temperature: | 4 - 50°C | Pressure Hydrostatic: | 300 Psi Working:20 - 125 Psi |
|---|---|---|---|
| Medium: | Water | Service Life: | 8-10 Years |
| High Light: | pneumatic diaphragm valve,hydraulic diaphragm valve |
||
EPDM acid - resistant alkali automatic diaphragm valve wholesale sales
Y pattern diaphragm valve
Y pattern diaphragm valve Features:
1.Y pattern diaphragm valve adopts dual control chamber design, to control the internal water flow, so that the control function is more flexible, reliable and durable, totally eliminates the switching defects that single chamber might have.
2. Y pattern diaphragm valve body and valve bonnet is made from fiberglass reinforced NORYL material, high strength, long service life and corrosion resistant.
3. The reinforced rubber diaphragm is molded by special treatment, long service life, and high strength.
4. Y shape flow channel design reduces pressure loss, increases water flux.
5. Flexible conversion between normally-open type and normally-closed type.
6. Spring assisting, water flow restriction and operation display are available also.
Working pressure: 1.0-8.0 Bar (1.0 - 8.2 kg/cm2)
Working temperature: under 4°C- 50°C.

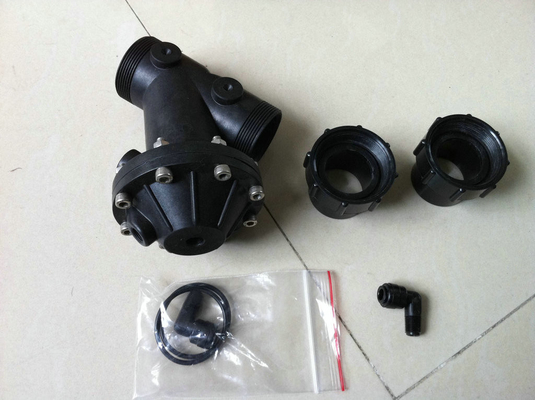

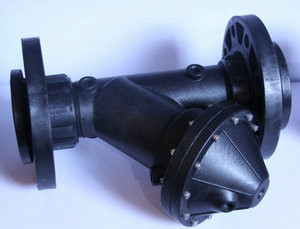

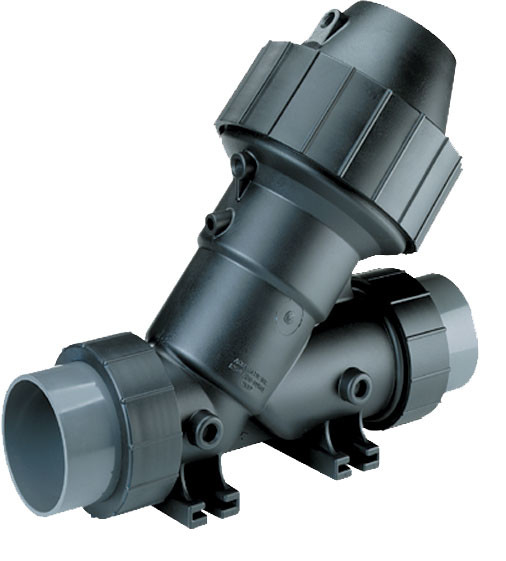

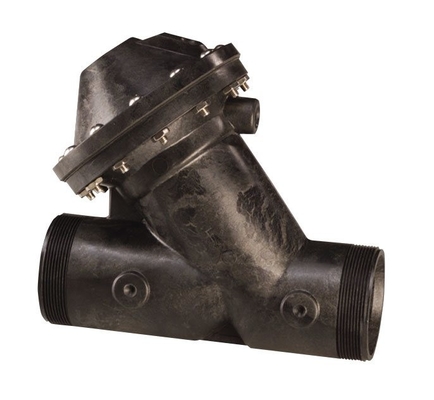

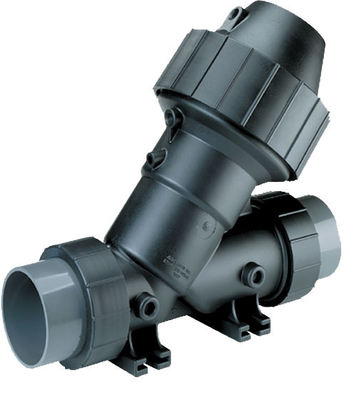

Pictures of Y pattern diaphragm valve:
Application-multi valves system:
Standard export carton packing.
7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
