Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Guangzhou, China (Mainland) | Brand Name: | Jieming |
|---|---|---|---|
| Certification: | CE Certificate | Model Number: | HPCF-5DC2 |
| Product Name: | UPVC Filter Housing | Material: | UPVC |
| Usage: | Pretreatment | Cartridge Capacity: | 3-5 Elements |
| Working Pressure: | 0-0.6Mpa | Working Temperature: | 45℃ |
| In/Out: | DN40/ANSI 1.5" | Cartridge: | 10"-40" |
| High Light: | pvc cartridge filter housing,water softener filter housing |
||
Corrosion resistant plastic all plastic precision filter (PVC filter PP filter element) wholesale sales agent

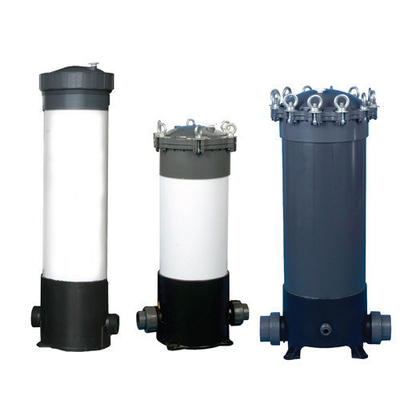

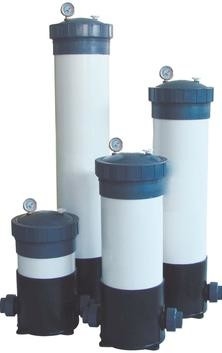

PVC cartridge filter 3 or 5 rounds:
JMCF PVC cartridge filter is a filter system with high precision. It consists of the housing and cartridge elements, mainly used in pretreatment. It can be widely used in electronic industry, sewage treatment, beverage, foods, pure water treatment, also it can acts as home water purification equipment.
In 2005, it has got the utility model patent, which is issued by the state intellectual property office of the P.R.C. The patent No. is ZL 2005 2 0100822.3
In 2009, it has got the patent of invention.
The patent No. is: 200510049495.X
It has achieved 0-0.6MPa 100,000 times recycle fatigue test successfully.
|
Type |
Material |
Size |
Cartridge PCS |
Cartridge Size |
In/Out (mm) |
Max pressure |
|
|---|---|---|---|---|---|---|---|
| JMCF-5DC1 | JMCF-3DC1 | UPVC | Φ255-H465 | 5 / 3 | 10” |
DN40/ANSI 1.5”(W=365) DN50/ANSI 2”(W=473) |
A=0.4Mpa |
| JMCF-5DC2 | JMCF-3DC2 | Φ255-H715 | 20” | ||||
| JMCF-5DC3 | JMCF-3DC3 | Φ255-H965 | 30” | B=0.6Mpa | |||
| JMCF-5DC4 | JMCF-3DC4 | Φ255-H1215 | 40” | ||||
Note: It can install all material, all precision`s cartridge 5 pcs, which I.D. is 28-30mm; O.D.is 65-70mm; The highest of working temperature is 45°C, The size of the two holes in the lid of the filter is G1/4”.
PVC cartridge filter product Merits:
1. All the parts of this series filter are made of UPVC.
2 .The inlet and outlet are in the same line, which connected with the pipe is adopt a 1.5” or 2”union.
3. The distribution system of JMCF filter is distributed from bottom to top. Water is well-proportioned with small strike to cartridge and air is easy to be discharged.
4. The bottom system of JMCF filter is designed together as a whole with the top localizer & closure system. Cartridge are easy to be installed, pushed down and closed, preventing leaking inside.

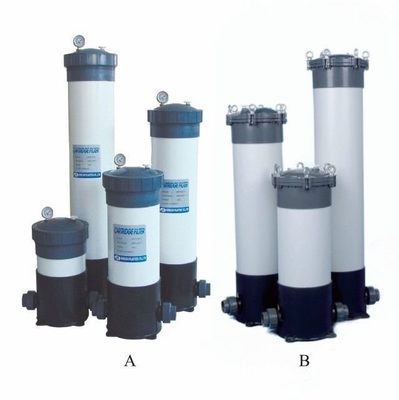

5. A series: The lid and the body are connected by a nut. Ensure a good seal performance.
B series: The lid and the body are connected using flange method, ensure the housing can stand higher pressure.
6. JMCF filter is corrosion resistant. It can be used in SS-non-replace field.
PVC cartridge filter 8 or 9 rounds:
|
Type |
Material |
Size |
Cartridge PCS |
Cartridge Size |
In/Out (mm) |
Max pressure |
|
|---|---|---|---|---|---|---|---|
| JMCF-9DC1 | JMCF-8DC1 | UPVC | Φ315-H495 | 9 / 8 | 10” |
DIN 1/2” or ANSI 1/2”
|
0.6Mpa (86PSI) |
| JMCF-9DC2 | JMCF-8DC2 | Φ315-H745 | 20” | ||||
| JMCF-9DC3 | JMCF-8DC3 | Φ315-H995 | 30” | ||||
| JMCF-9DC4 | JMCF-8DC4 | Φ315-H1245 | 40” | ||||
Note: It can install all material, all precision`s cartridge 8/9 pcs, which I.D. is 28-30mm; O.D.is 65-70mm; The highest of working temperature is 45°C, The size of the two hole in the lid of the filter is G1/4”.
PVC cartridge filter product Merits:
1. All the parts of this series filter are made of UPVC.
2. The inlet and outlet are in the same line, which connected with the pipe is adopt a 3”union.
3. The distribution system of JMCF filter is distributed from bottom to top. Water is well-proportioned with small strike to cartridge and air is easy to be discharged.
4. The bottom system of JMCF filter is designed together as a whole with the top localizer & closure system. Cartridge are easy to be installed, pushed down and closed, preventing leaking inside.
5. A series: The lid and the body are connected by a nut. Ensure a good seal performance.
B series: The lid and the body are connected using flange method, ensure the housing can stand higher pressure.
6. JMCF filter is corrosion resistant. It can be used in SS-non-replace field.
Standard export carton packing.
7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
